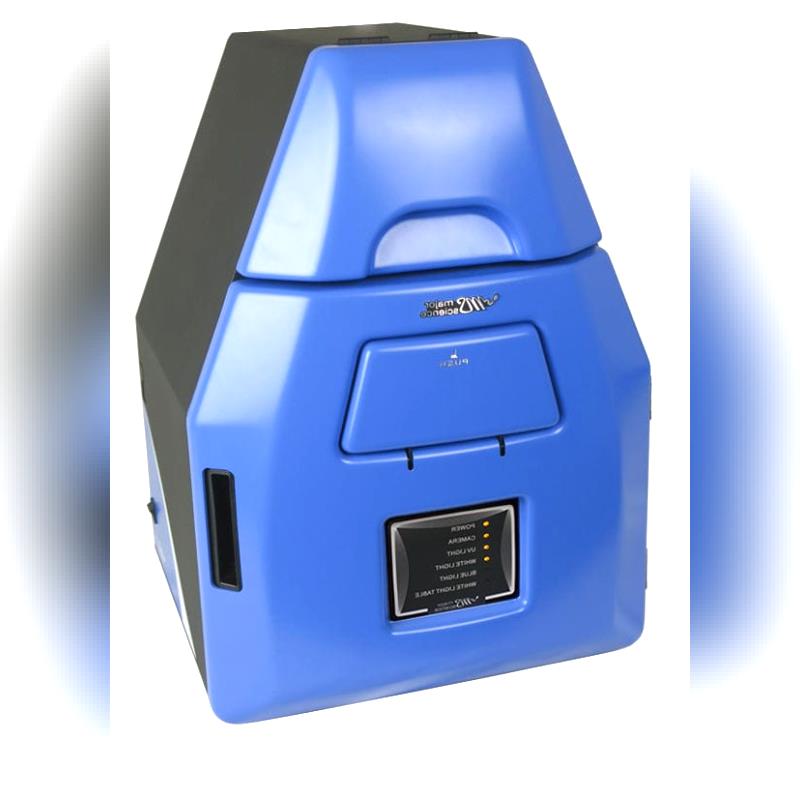

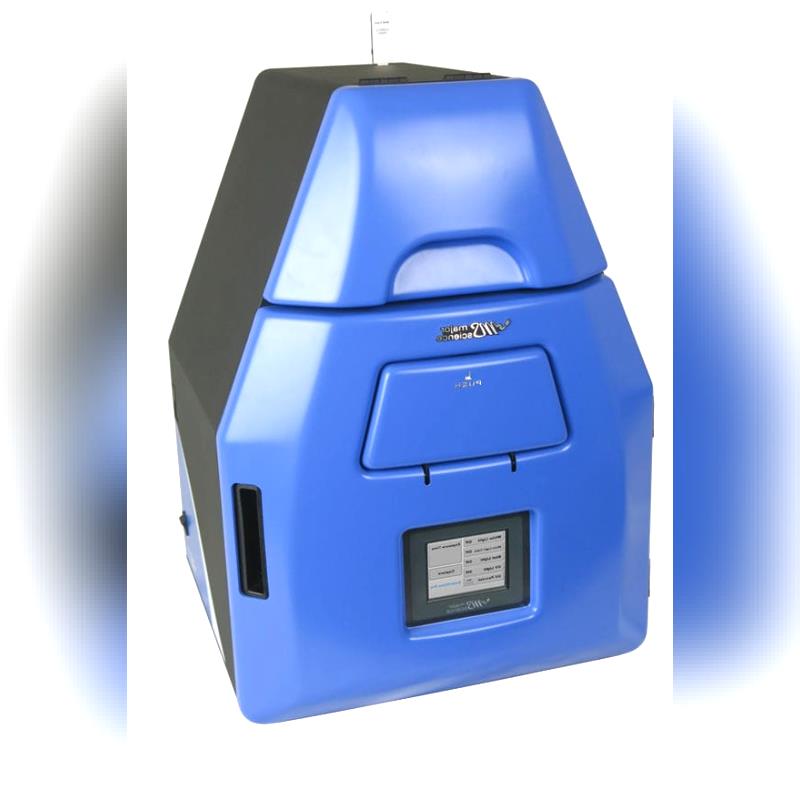

Gel Documentation System With Cmos Camera
| Options | With Cmos Camera |
The SmartView Pro 1100 provides the basic feature and standard operation.
Features
High resolution 5.0 megapixel monochrome camera (UVCI-1100)
PC integration with real-time image
Capture/Analysis software included

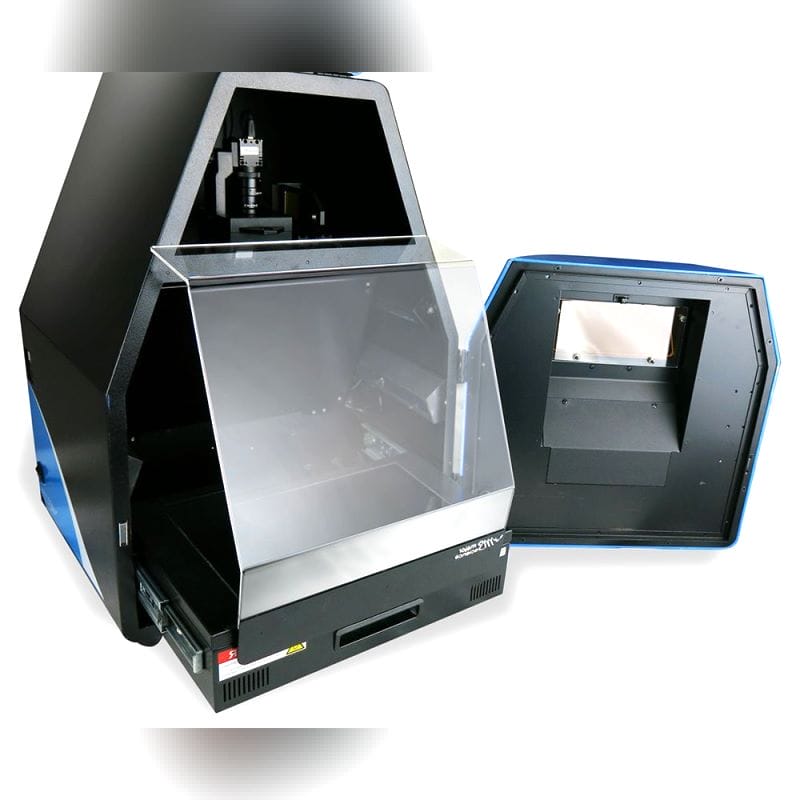

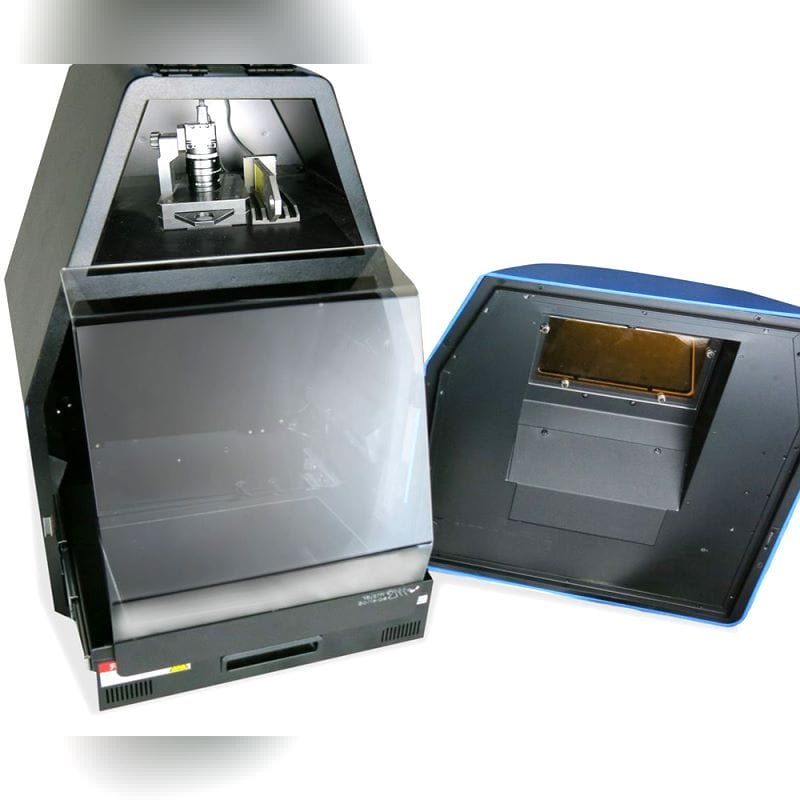

Pull out UV Transilluminator for easy gel cutting
Easy installation, ready to use right out of the box
Pre-focused lens allows one-touch image capture
Variety of optional accessories available
UV safety cut-off switch when door is open
CE and FCC certification
Specification
UV Light
Built-in drawer type UV Transilluminator 312(302)nm
Camera
1/2.5″ 5M Pixel Monochrome sensor
Pixels Size
2.2μmx2.2μm
Lens (Camera)
6mm, F1.2
Camera Video Output
12-bit

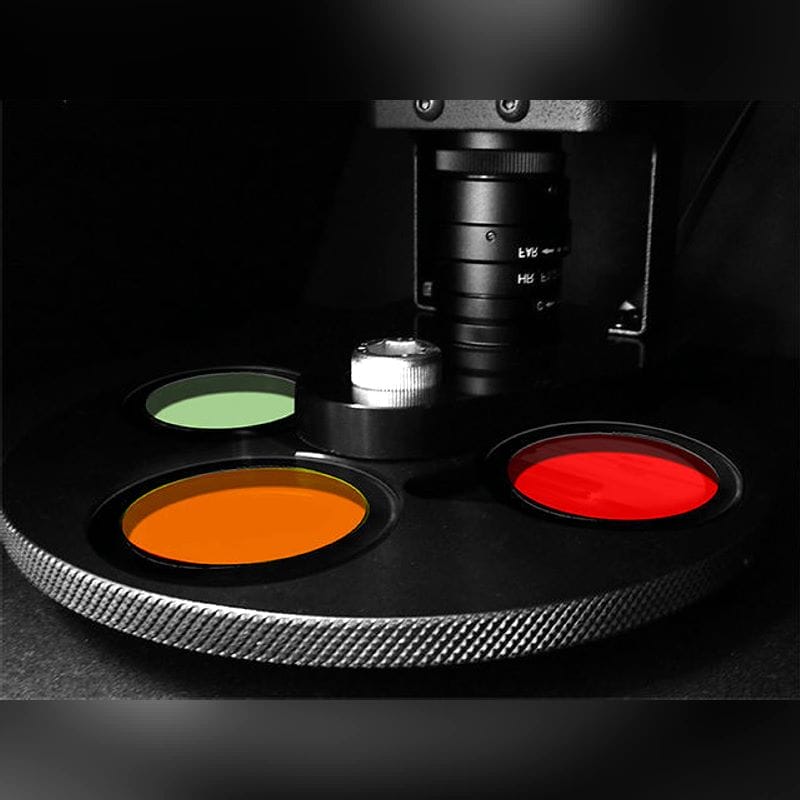

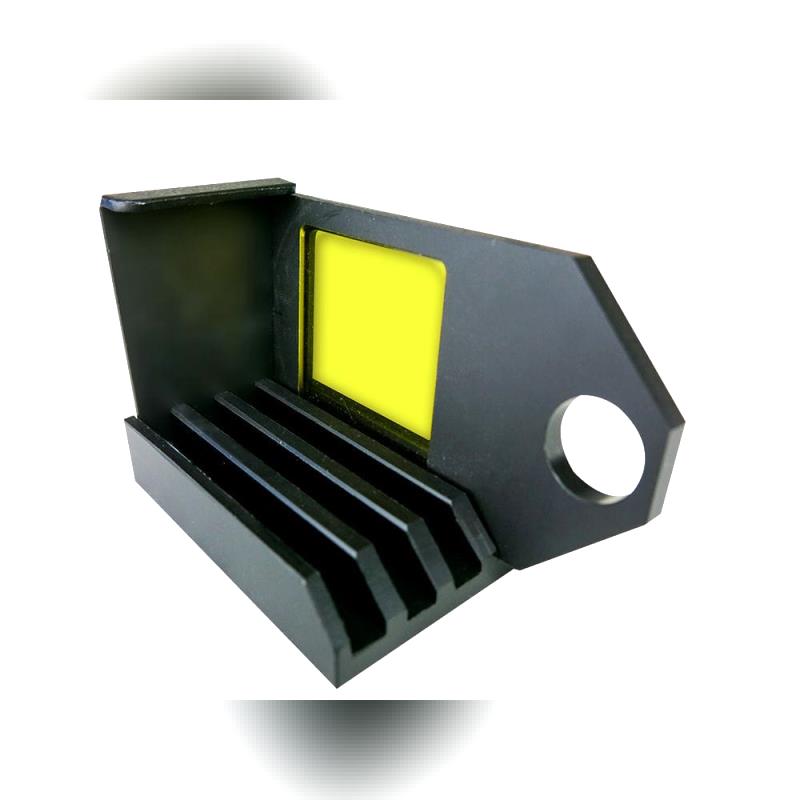

Filter (Camera) *Ordered separately
Optical EtBr Filter / Optical SYBR Green Filter / Yellow Amber Filter / Orange Amber Filter
Image Storage
PC
Software Support
Window 10 / 8 / 7 (64bit & 32bit) / XP / Vista
Cabinet
Pull out, sliding transilluminator
Field Of View (WxL)
Approx. 10.2″x8.3″ (260x210mm)
Dimension (WxLxH)
Approx. 16.1″x15.9″x22.4″ (410x405x570mm)
Weight
Approx. 54lbs. (24.5kg)
Display
LED indicator light
Viewing Window
Built-in UV viewing window
Window Filter
Built-in Viewing Window Amber Filter 560nm
Light
White light (standard)
Optional Accessory
White Light Plate (power built-in)
Blue light (power built-in) 470nm
Safety
CE, FCC
PC Connection
USB port
1 D Analysis Software
Cat. No. MBE-IMG-SW included
Saved Image
BMP/JPEG/PNG/TIFF, 8 bit; PNG/TIFF, 16 bit
Rated Voltage
100-240V~, 50/60Hz, 2A
